Versions
- Soundproofed Plus version with integrated dryer: fitted with direct expansion, air-cooled refrigeration dryers filled with environmentally friendly gas, which translate to a full, yet particularly compact, system. Particularly suitable for applications where dry, moisture-free air is of crucial importance for production.
- Soundproofed R version with heat recovery kit: recovers the heat produced during the compressor's operation and makes it available for heating water for industrial or domestic use.
Energy Savings
Equipped with high-efficiency IE3 electric motors.
The low rotation speed of the air end, the 1:1 direct coupling between the electric motor, and the compressor itself ensure energy savings of more than 15% compared to other rotary compressors.
Inverter
The inverter system is designed to change the motor rotation speed, thus adapting the air delivered to the system requirements and reducing power consumption up to 35%.
Simple, economical maintenance
Maintenance is limited to changing the oil at scheduled intervals, cleaning or changing the air filter and cleaning the radiator. The absence of roller bearings contributes significantly to reducing maintenance costs.
Standard maintenance costs are, however, low due to the near-unlimited lifespan the vanes, rotor and when proper maintenance is performed. Over 100,000 hours of operation are guaranteed without the need to replace the compression unit.
Compact design and silent operation
The compact design and small footprint allow installation even in confined spaces. Large hinged doors and easily removable panels allow complete accessibility for all maintenance and service operations. The base is equipped with openings that permit easy lifting and handling.
Mattei air compressors are coated with epoxy powders, resistant to both corrosion and scratches. The interiors are also coated with abundant soundproofing material.
Quality air
The 99% efficient filtration system ensures quality compressed air for every application, while the special multi-stage oil separation guarantees a residual oil content in the air of less than 3 mg/m³.
Electronic control

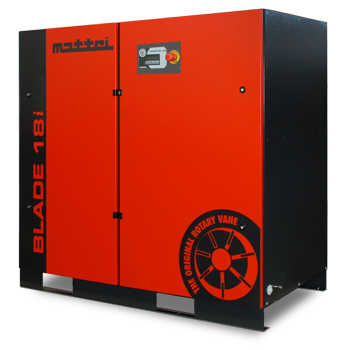

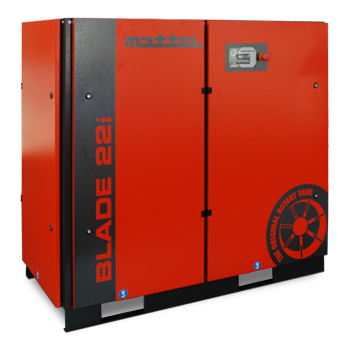

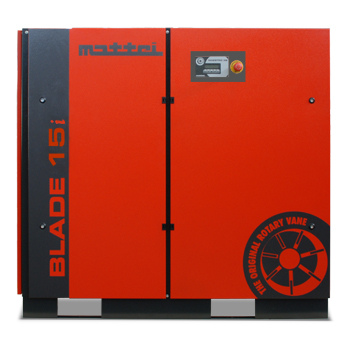

Blade i 15-18-22 series compressors are equipped with Maestro XB electronic controllers, with graphic display allowing constant monitoring of oil temperature, line pressure, operation, and load hours.
