Installations
- Soundproofed R version with heat recovery kit: recovers the heat produced during the compressor's operation and makes it available for heating water for industrial or domestic use.
- Soundproofed W version fully water-cooled: it cools oil and air entirely with water and is suitable for environments where the heat produced by the compression process is particularly complex to dissipate.
Energy Savings

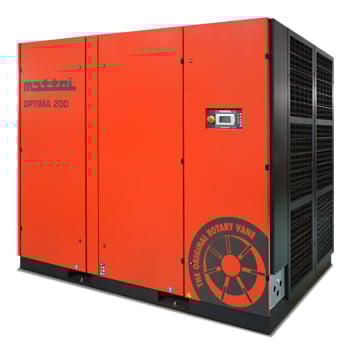

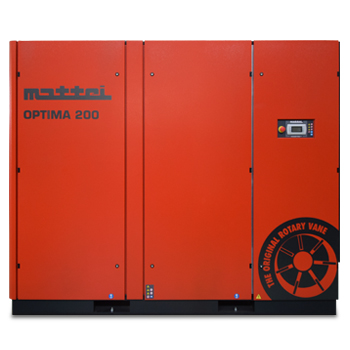

Optima 200 series compressors are equipped with IE3 class energy saving electric motors.
The low rotation speed of the air end and the 1:1 direct coupling between the electric motor and the compressor ensure energy savings of more than 15% compared to other rotary compressors.
Inverter
The inverter system is designed to change the motor rotation speed, thus adapting the output air flow to the system requirements, thus reducing power consumption up to 35%.
Optimised Cooling System
The energy-saving electric fan connected to the inverter operates with the same frequency as the main fan.
Simple, Economical Maintenance
Maintenance is limited to changing the oil at scheduled intervals, cleaning or changing the air filter and cleaning the radiator. The absence of rolling bearings contributes significantly to reducing maintenance costs.
These costs are however low because the vanes, rotor and stator have an almost unlimited life if proper maintenance is performed. Over 100,000 hours of operation are guaranteed without the need to replace the compression unit.
Compact Design and Silent Operation
The compact design and small footprint allow installation even in confined spaces. Large hinged doors and easily removable panels allow complete accessibility for all maintenance and service operations. The base is equipped with openings that permit easy lifting and handling.
Mattei air compressors are coated with epoxy powders, resistant to both corrosion and scratches. They are also coated inside with abundant soundproofing material.
Quality Air
The 99% efficient filtration system ensures quality compressed air for every application, while the special multi-stage oil separation, with primary oil separation and secondary basket air-oil separator, guarantees an unrivalled lower residual oil content in the air.
Electronic Control
Optima 200 series compressors are equipped with Maestro XS electronic controller that makes it possible to control, monitor and program the compressor's operation. The unit can also be controlled remotely via a PC connection.
